Sun Mar 13 2011

Purge line tubing

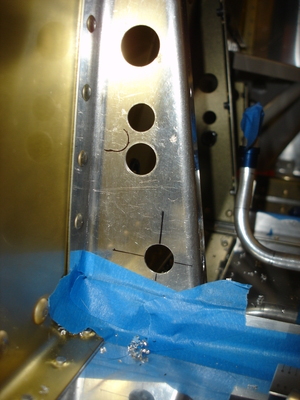

Today I got around to drilling the hole in the bracket for the purge line. It's the bottom right one. Came out good except I should have drilled it 7/16 inch diameter instead of 1/2 inch diameter. Now I'm going to have to acquire and install one oddball snap bushing. It's always something.

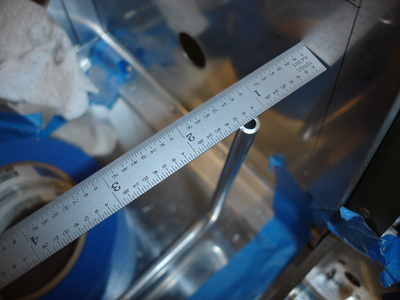

First attempt at bending the purge line resulted in a piece that is about 3/4 inch too short. It should be 1/2 inch from the firewall.

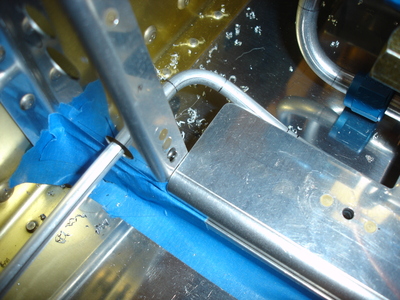

...and at the aft end, the line interferes with the mounting plate for the high pressure boost pump.
