Fri Jan 07 2022

Canopy gas strut stop plates

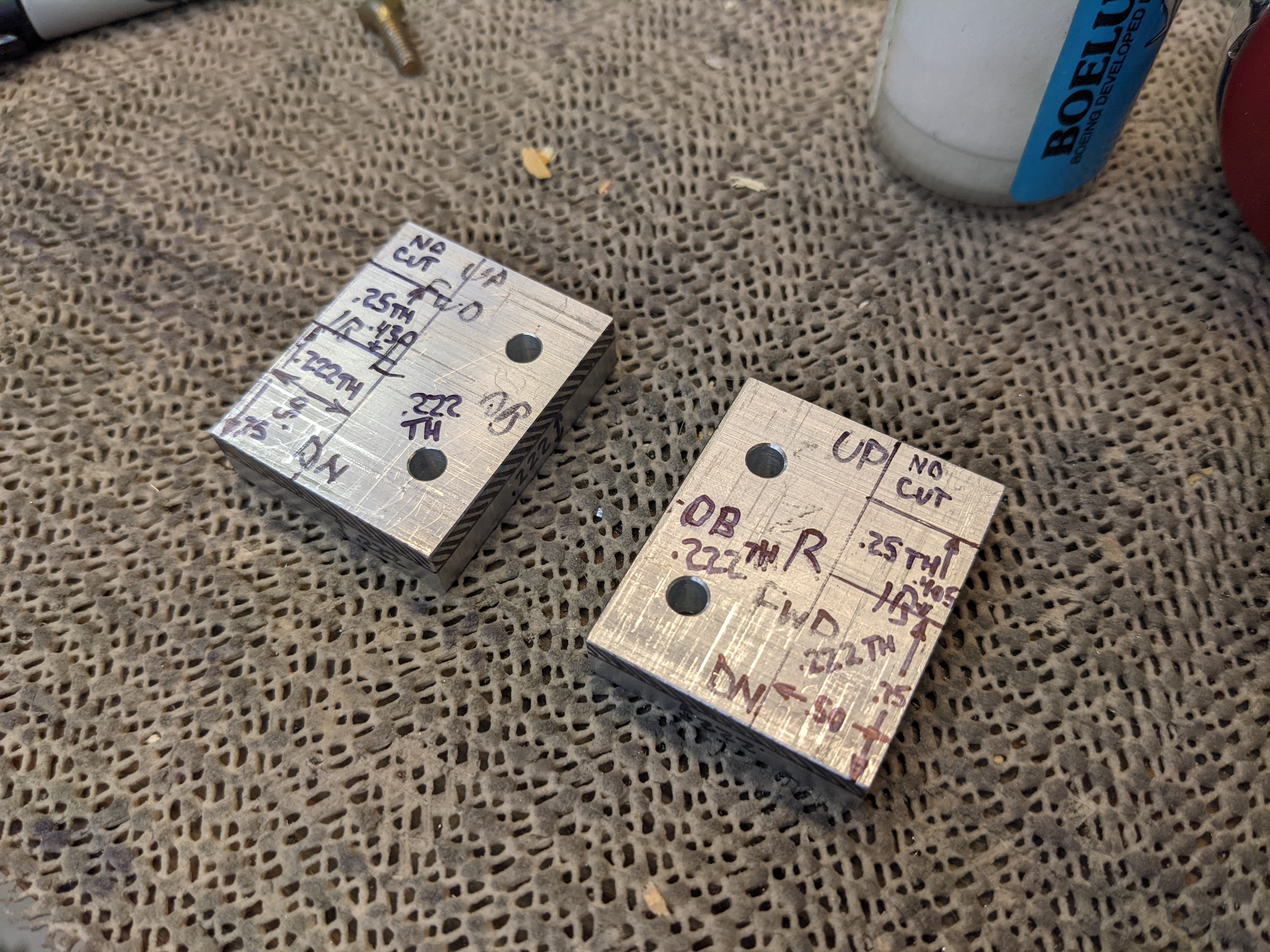

Here's a layout of the latest iteration of the canopy strut stop plates.

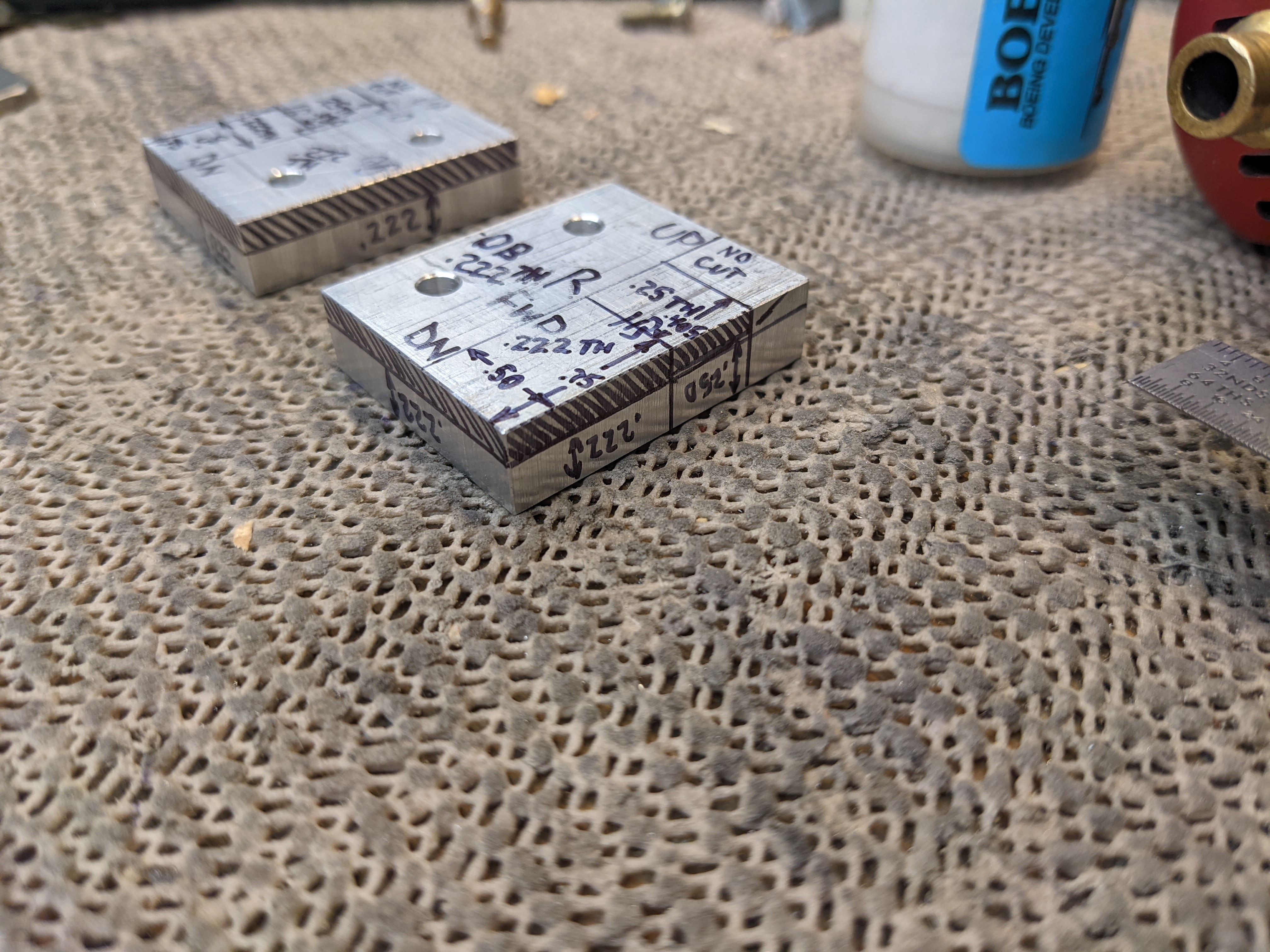

...a view of the side where I'll be machining away material.

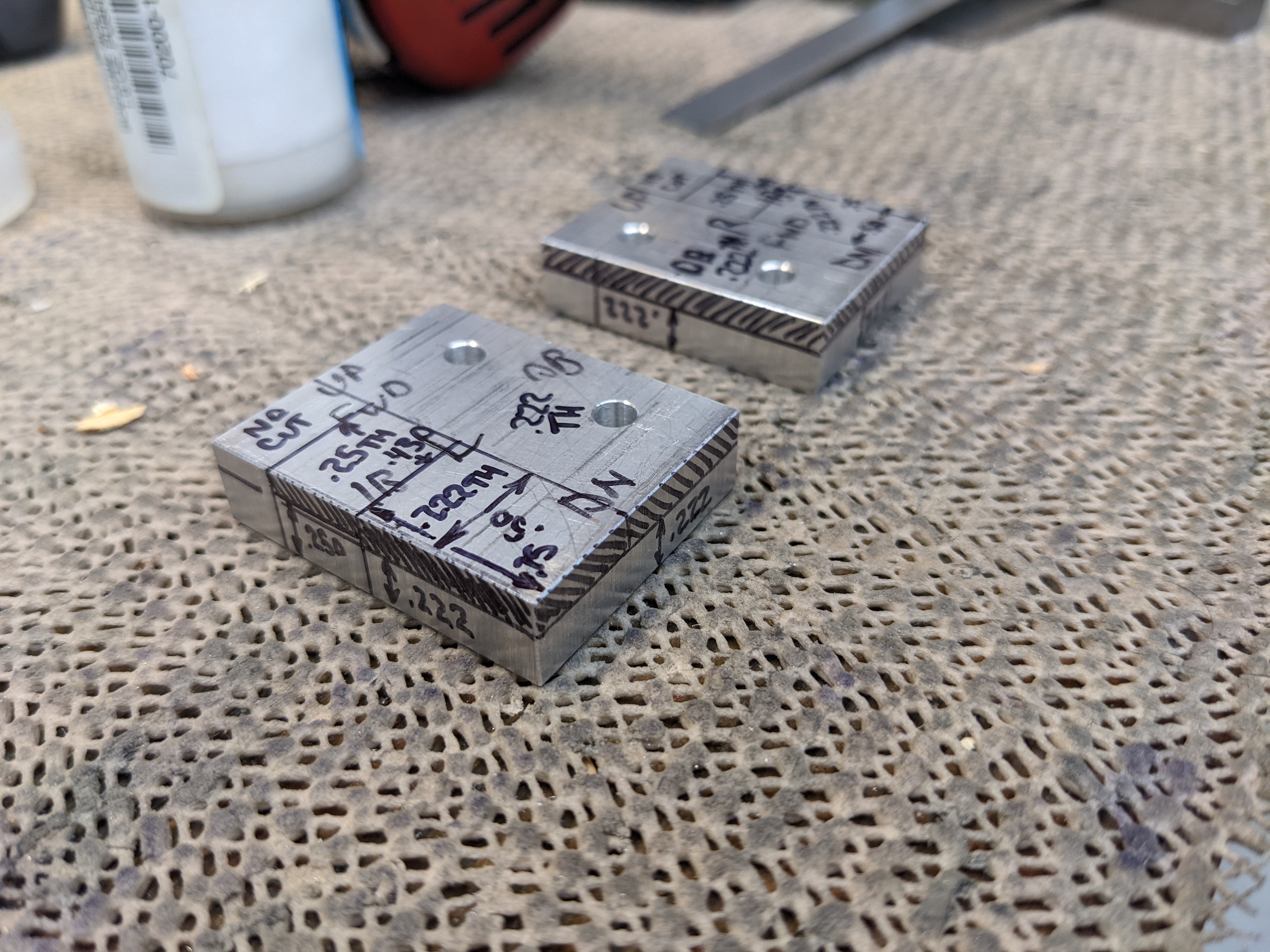

...and a view from the other side.

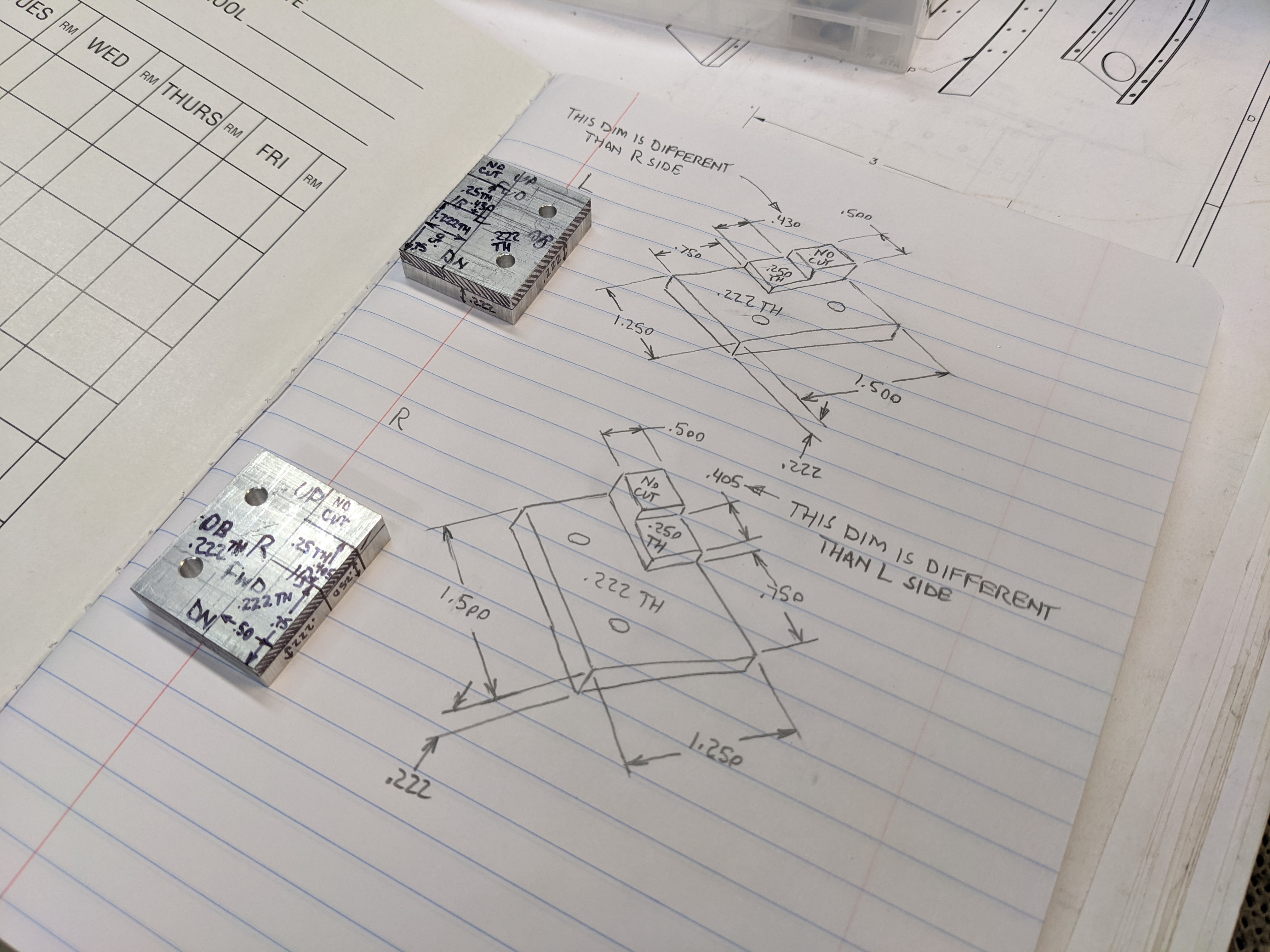

Here's a sketch. Don't pay any of this much I write this, I know these will be replaced with a different version.

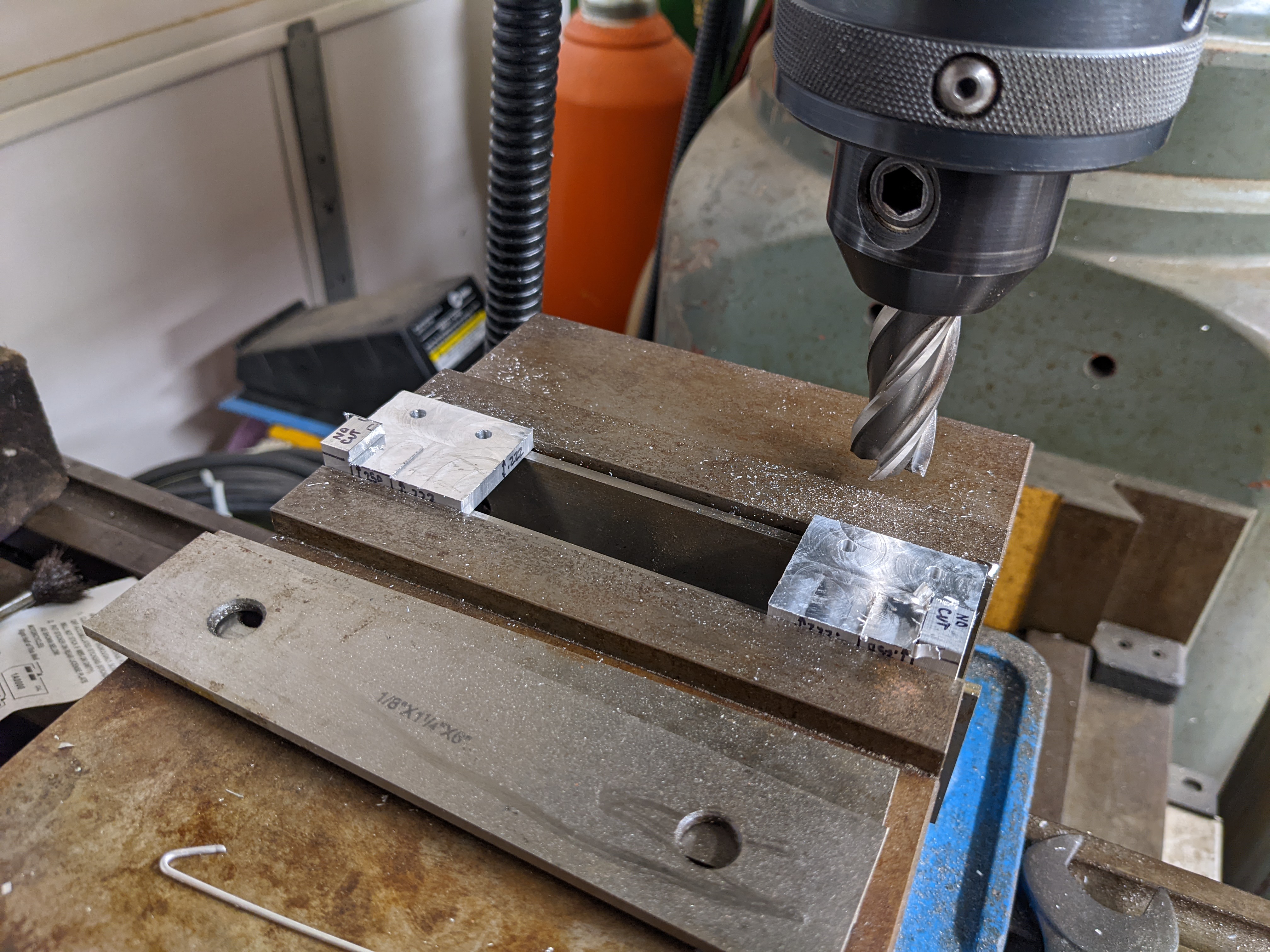

Machined away most of the material on Chris' mill.

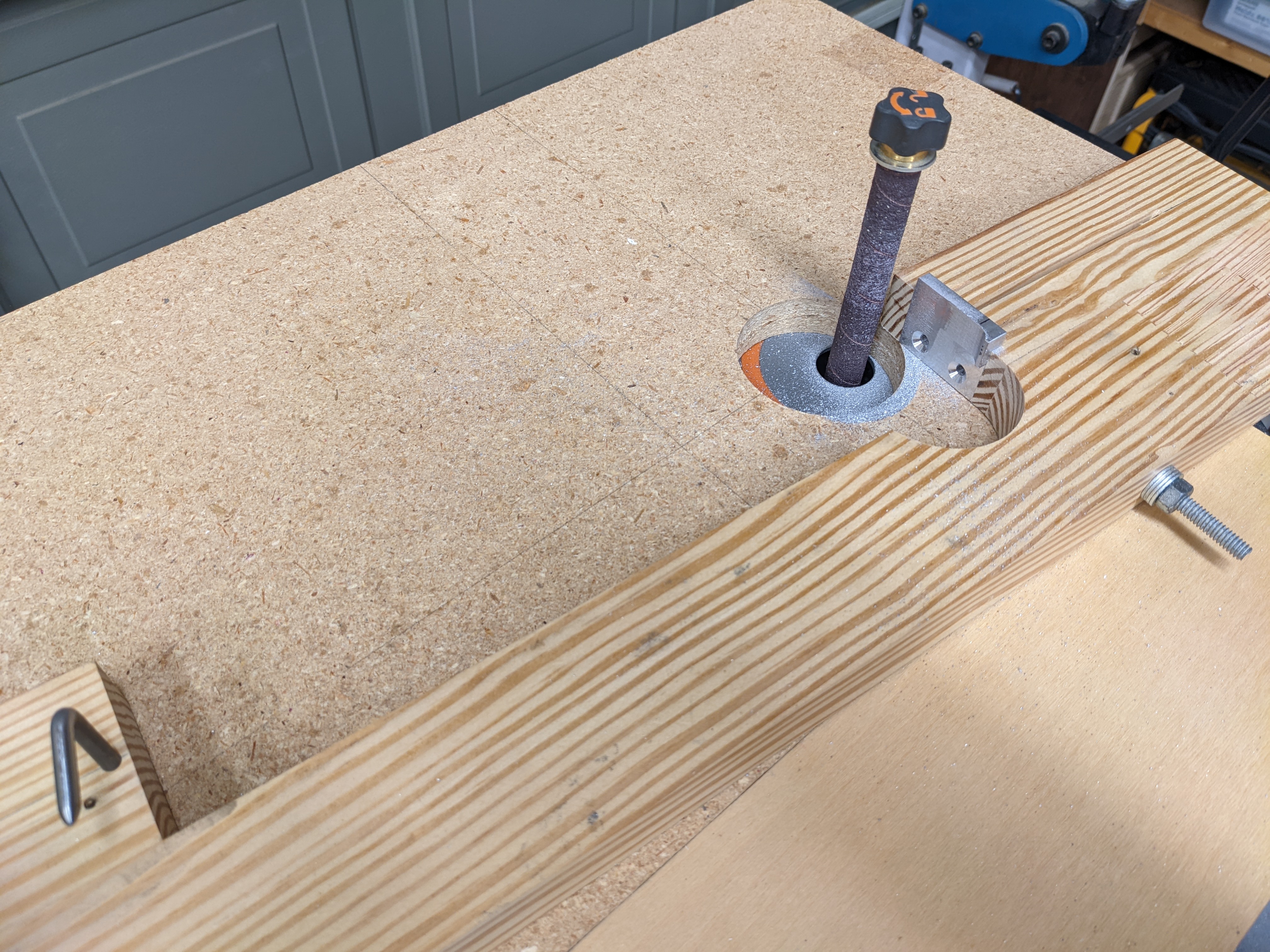

...then sanded the desired curve on the oscillating spindle sander.
