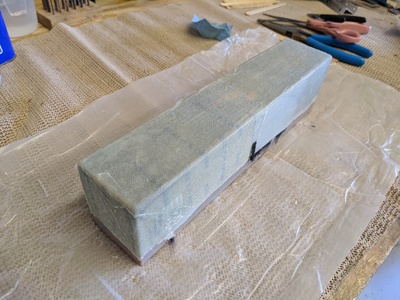

This morning, I unbagged the layup and peeled off the felt and peel ply. It seems I
had a gap in my peel ply in one small area. The felt stuck.
|
|
|

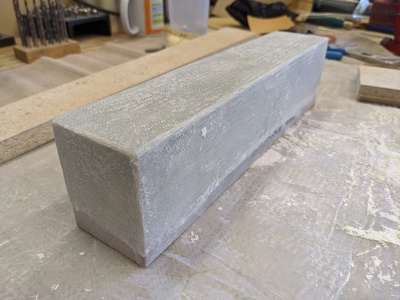

I sanded down the sides where the tabs resulted in extra thickness.
|
|
|

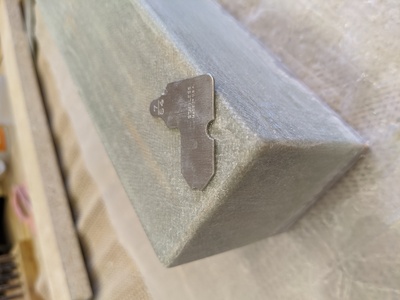

...and sanded the edges to the correct radius for this phase of the layup.
|
|
|

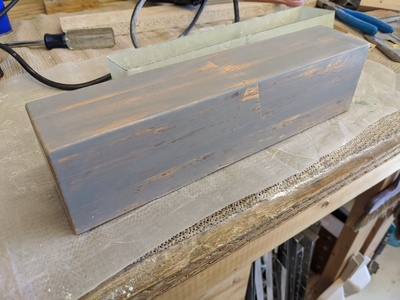

Time to de-mold this part.
|
|
|

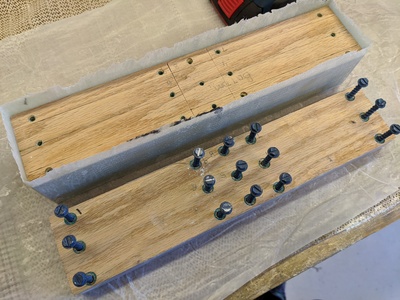

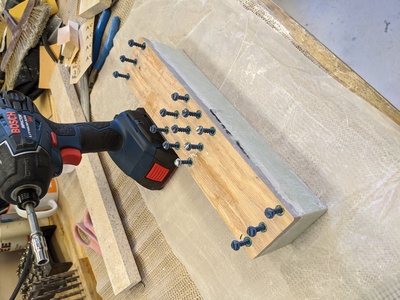

The base came out no problem.
|
|
|

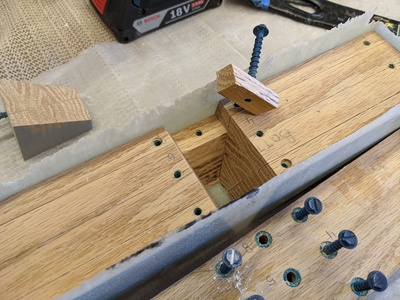

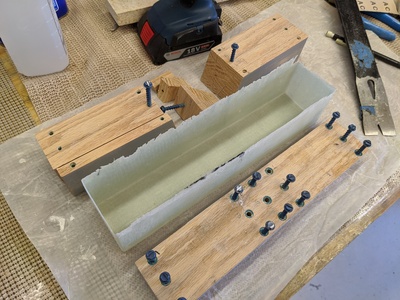

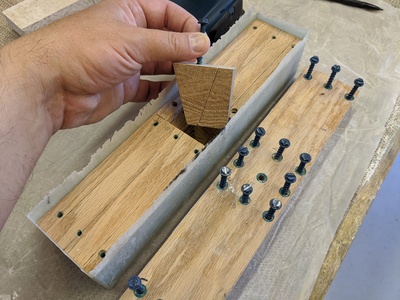

Got the center wedge out. An adjacent piece came with it.
|
|
|
The other small center piece came apart at a glue line when attempting
to remove it. I was able to remove the rest easily enough.
|
|
|

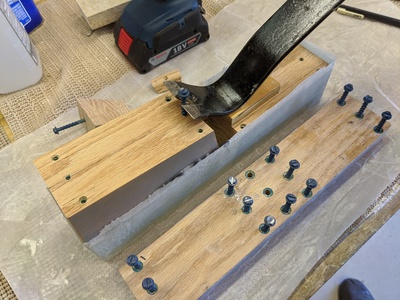

The end blocks needed a bit of leverage to remove them.
|
|
|
But in only a minute or two, the part was demolded! W00t!
|
|
|

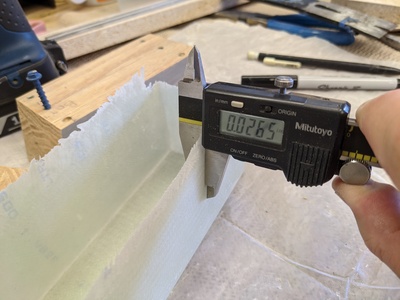

My expectation was that these four layers would be .028 thick. Pretty darn close.
|
|
|

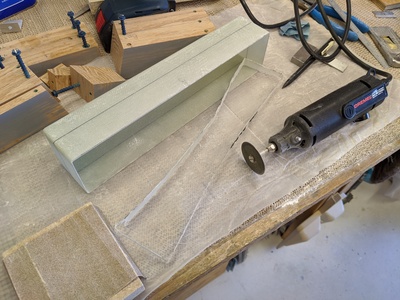

I trimmed the sharp bits off the bottom edge.
|
|
|
While I was working, Snickers guarded the driveway. :-)
|
|
|

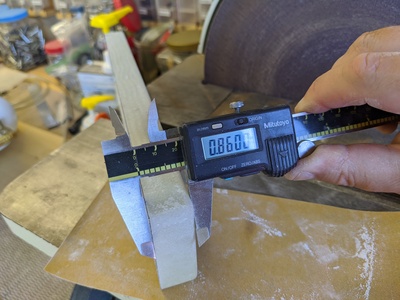

I then cut the lid and sanded the edges until the sides were .860 high.
|
|
|

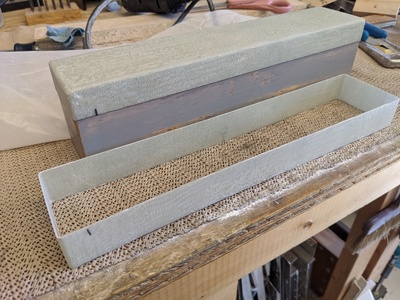

This band is going to be temporarily reused as a spacer for the layup of the next five layers.

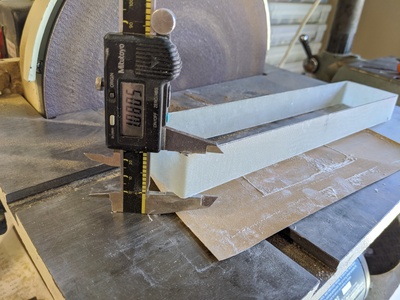

I sanded it to a consistent height.
|
|
|
I reassembled the mold...
|
|
|
...pressed the lid on the top...
|
|
|

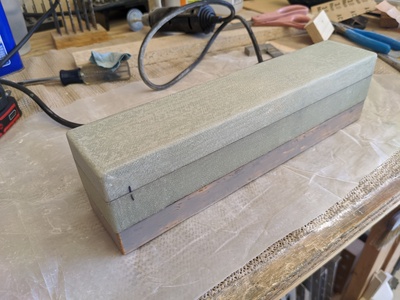

...and after waxing and spraying the extra band with mold release, pushed it into place.
Tomorrow, I hope to be able to layup the five middle layers. I'm thinking of just wrapping
them around the mold and folding all the tabs up to the top. Also, I need to add a piece
of aluminum on one side to act as the flange of the piano hinge half which will ultimately
be embedded in this lid.
|
