Tue Mar 29 2022

New gas strut stop bearing bracket nut plates

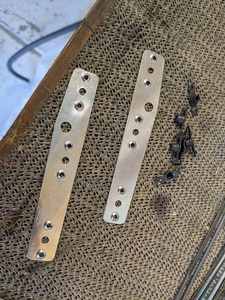

With the addition of a third mounting screw for the gas strut stop bearing brackets, I needed to fabricate some new nutplate plates. The large hole is clearance for the shop head of one of the panel mounting bracket rivets.

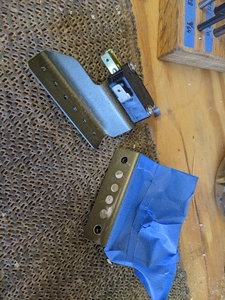

I mounted the canopy pivot pin sensing switches to their respective brackets, located and drilled them to the sub panel, and countersunk and installed nutplates. In the process, the primer rubbed off, so I'll just mask these off and spray a bit more primer.

All ready for the next time I spray some parts.
