Tue Nov 15 2022

Positioning interior side panel pocket

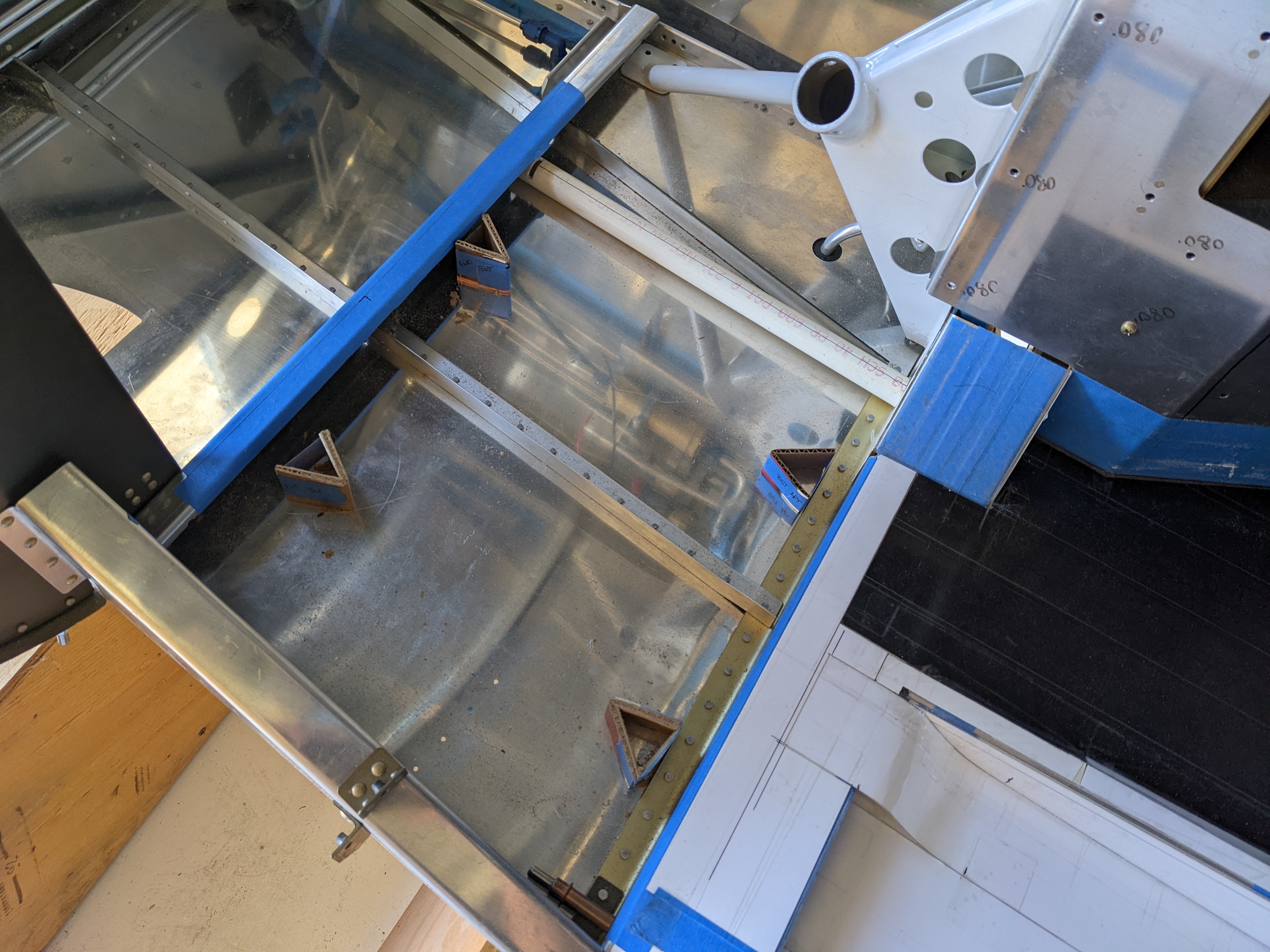

I removed the masonite and poster board which spanned from the F-903 to the F-704 bulkheads...

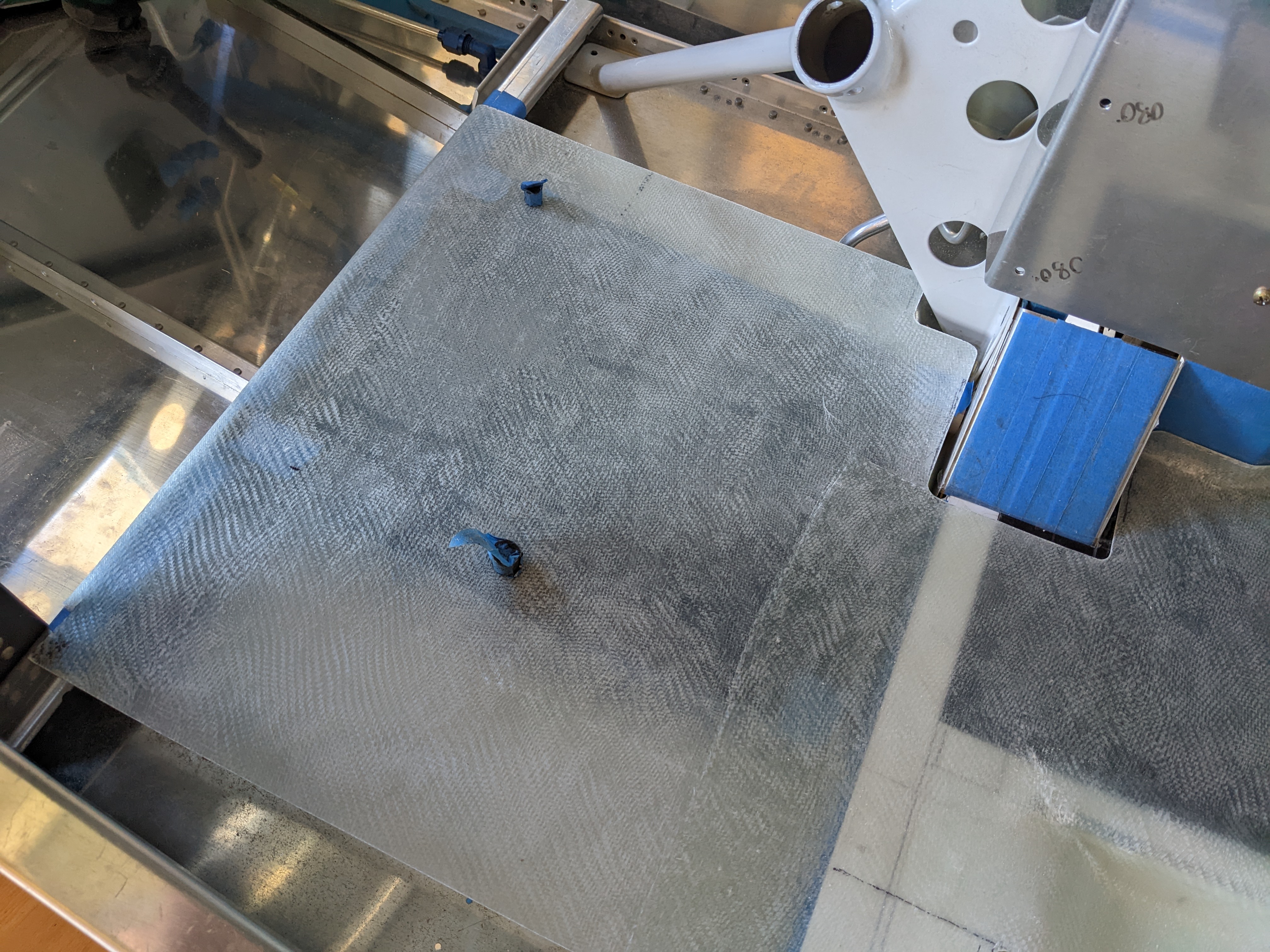

...and attempted to position the side panel pocket behind the side panel using magnets. Ultimately, I want to determine the location of the pocket relative to the side panel and trace around the outside edge so that I can later bond it on. However, doing so is tricky since there's no finger access to move the pocket around and fine tune the position. Also, once the pocket is positioned correctly, the magnets aren't really strong enough to keep it in place when removing the side panel and flipping it over. Adding more magnets just makes the situation worse as they want to stick to the landing gear weldment or snap together. I'm going to have to figure out a better way.
